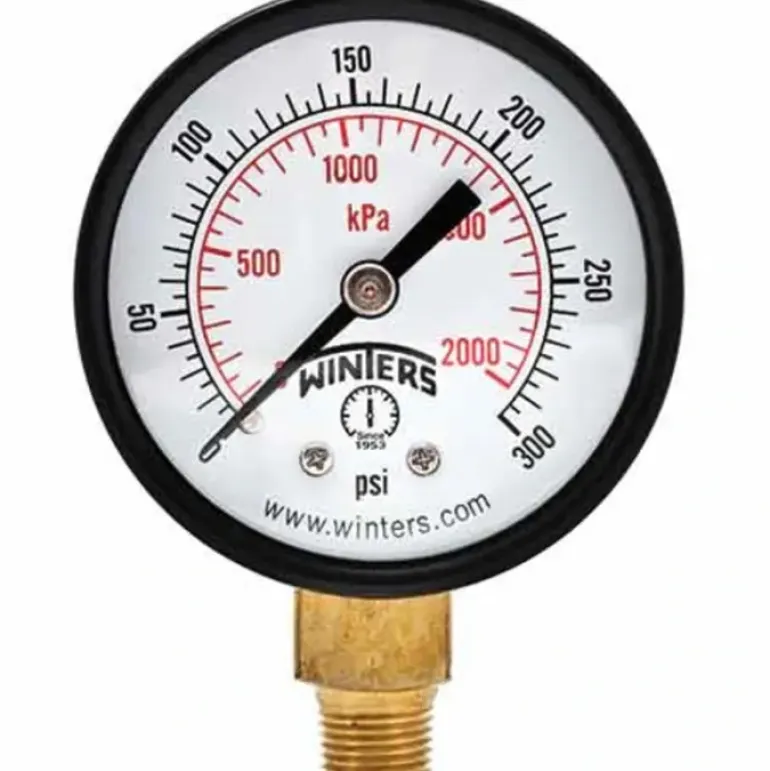

Winters Instruments PEM1411LF Pem Economy Pressure Gauge / Pem-Lf Lead Free Economy Pressure Gauge – One-stop shop for professional tools and equipment.

Description

Product Description

Winters Instruments – PEM1411LF

Features

• Most economical, all-purpose pressure gauge
• 1.5” (40mm) to 4” (100mm) sizes
• Friction bezel rings
• Black steel case
• Brass or lead free brass wetted parts
• ASME B40.100 compliant (EN837-1 available)
• ±3-2-3% accuracy
• CRN registered
• Lead free version NSF-61-372 certified
• 5 year warranty

Applications

Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM

Additional Information

Dial1.5” (40mm), 2” (50mm), 2.5” (63mm), 4” (100mm) white aluminum with black and red markings

Case Steel, painted black (plastic available)

Lens1.5” (40mm), 2” (50mm), 2.5” (63mm): Acrylic, 4” (100mm): Glass

Ring1.5” (40mm), 2” (50mm): Steel, painted black, 2.5” (63mm), 4” (100mm): Steel, chrome plated

SocketPEM: Brass, PEM-LF: Lead Free Brass, NSF-61-372 certified

Connection1/8” NPT or 1/4” NPT standard

Bourdon TubePEM: Phosphor bronze, PEM-LF: Lead free phosphor bronze, NSF-61-372 certified

MovementPEM: Brass, PEM-LF: Lead free brass, NSF-61-372 certified

PointerAluminum, black

WeldingSilver alloy

Over-Pressure Limit25% of full scale value

Working PressureMaximum 75% of full scale value

Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)

Accuracy±3-2-3% ANSI/ASME Grade B

Enclosure RatingIP52

WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
