Winters Instruments PAG20807 Pag 3A Pharmaceutical, Food, Beverage & Dairy Sanitary Gauge – One-stop shop for professional tools and equipment.

Description

Product Description

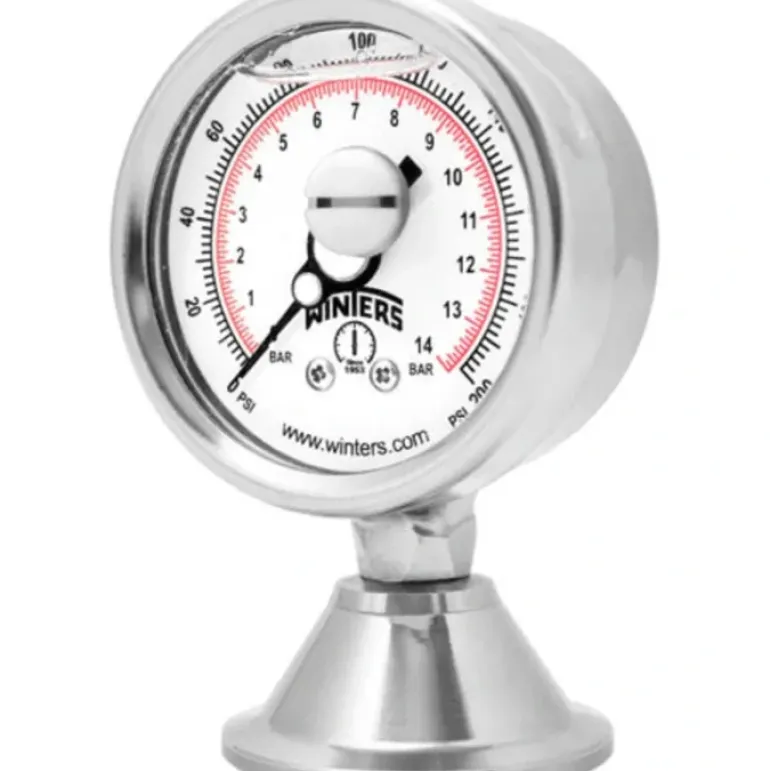

Winters Instruments – PAG20807

Features

• Designed for food, beverage dairy and pharmaceutical applications
• ±0.75% full scale accuracy
• Food grade glycerin filling standard
• Re-zero feature standard
• Crack/breakage-resistant polycarbonate lens standard
• Clean-In-Place design
• Steam-In-Place design
• Autoclavable
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

Built to withstand the harshest of sanitary applications and where 3A approval is required

Additional Information

Dial2.5” (63mm), 4” (100mm) aluminum

Case304 SS, polished

Repeatability0.25% of full scale

Linearity0.25% of full scale

Lens3/16″ thick polycarbonate

Over-range Capability50% of full scale

Hysteresis0.25% of full scale

CIP Temperature Limit250°F (121°C) continuous

SIP Temperature Limit300°F (149°C) 1 hour, dry

Bourdon Tube316L SS, welded

Socket316L SS, welded

Storage Temperature-22°F to 195°F (-30°C to 91°C)

Temperature EffectLess than 0.16% per 10°F (5.5°C) change in process or ambient temperature

Actuating FillFood grade glycerin standard (Mineral oil, silicone and Neobee-20 optional)

Case FluidFood grade glycerin standard (Dry, mineral oil, silicone and Neobee-20 optional)

Pulsation DampeningStandard

Re-zero FeatureExternally adjustable micrometer pointer

Wetted Parts316L SS, Ra

Bezel304 SS, polished

Ambient Temperature40°F to 140°F (4°C to 60°C)

Process Temperature0°F to 250°F (-18°C to 121°C)

Accuracy±0.75% of full scale value
