Description

Product Description

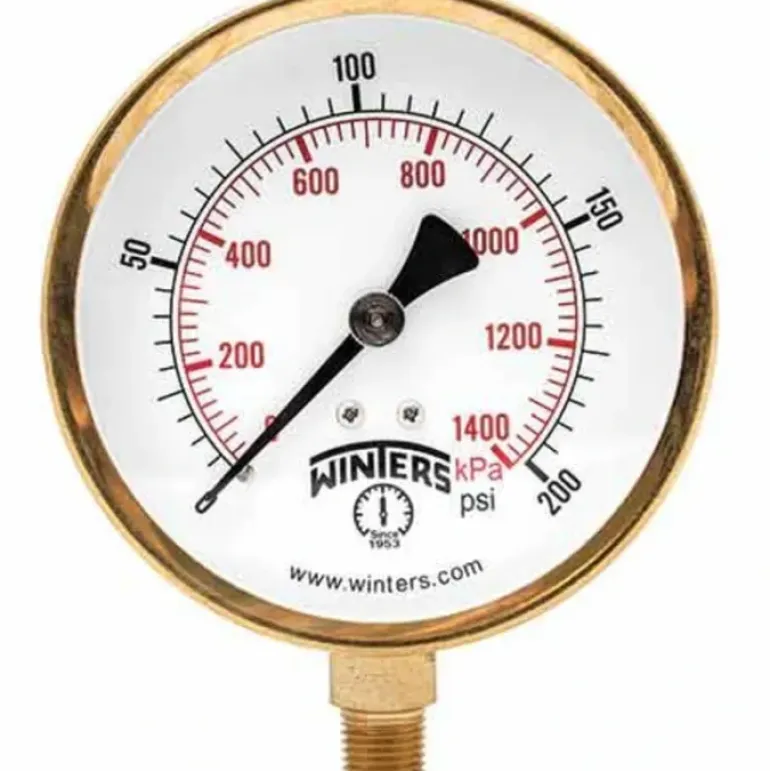

Winters Instruments – P1S256C

Features

• High quality, commercial grade gauge at an economical price
• ±1% accuracy
• Steel and aluminum cases
• Brass wetted parts
• ASME B40.100 compliant (EN837-1 available)
• CRN registered
• 5 year warranty

Applications

Commercial installations, plumbing, heating and cooling

Additional Information

Dial3.5” (90mm), 4” (100mm), 4.5” (115mm), 6” (150mm) white aluminum dial with black and red markings

Case3.5” (90mm), 4” (100mm): Steel painted black, 4.5” (115mm): Aluminum, 6” (150mm) Bottom: Steel painted black, 6” (150mm) Back: Aluminum

Lens3.5” (90mm), 4.5” (115mm) bottom connection, 6” (150mm): Glass, 4″ (100mm), 4.5” (115mm) back connection: Polycarbonate

Ring3.5” (90mm), 4” (100mm), 4.5” (115mm) bottom connection: Polished brass, 6” (150mm) bottom connection: Steel painted black, 4.5″ (115mm) back connection, 6″ (150mm) back connection: SS, polished

SocketBrass

Connection1/4” NPT standard

Bourdon TubePhosphor bronze

PointerBlack aluminum

WeldingSilver alloy

Over-pressure Limit25% of full scale value

Working PressureMaximum 75% of full scale value

Ambient/Process Temperature-40°F to 200°F (-40°C to 93°C)

Accuracy±1% ANSI/ASME Grade 1A

Enclosure RatingIP52
