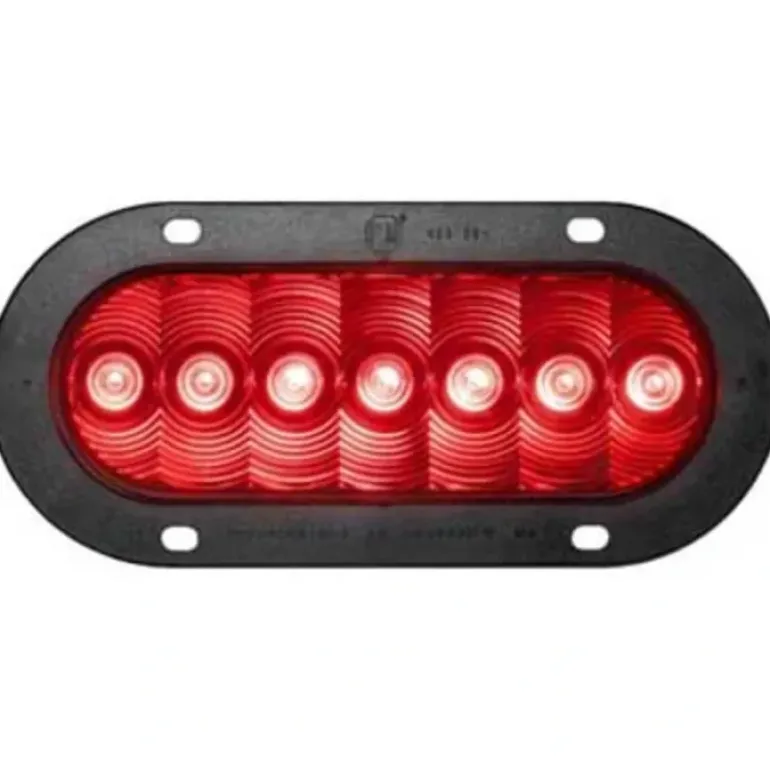

Peterson 823R-7 Led Stop/Turn/Tail, Oval, Amp, Flange-Mount 7.88″X3.63″, Red, Poly Bag – One-stop shop for professional tools and equipment.

Description

Product Description

Peterson – 823R-7

Features

• 7 diodes.
• Defender harness lighting system approved.
• Lumenx® lens and circuitry.
• Assembled in USA.
• Voltage Regulated.
• White diodes behind red lens.
• Advanced optics fully illuminate lens.
• AMP-compatible connector integrated into housing.
• 823-7 has flange welded to light, forming a single unit.
• 820 kit includes light, grommet and 817-49 plug.
• 823 kit includes light and 817-49 plug.
• 823RTL-7 version has integral narrower flange with recessed lens and two mounting holes positioned at ends for narrower rail applications.
• 9–16 volt operating range.
• Regulated design provides voltage protection and consistent light output over a wide voltage range.
• Meets FMVSS 108 req. in horizontal, vertical or any 360° position.

Additional Information

Bulb Technology Led

Bulb/Diode Count 7

California Proposition 65 Warning: Cancer And/Or Reproductive Harm – Www.P65Warnings.Ca.Gov

Container Type Poly Bag

Family Lumenx

Height 3.63 Inch

Integral Reflex N

Length 7.88 Inch

Lens Color Red

Light Color Red

Marine Use Y

Maximum Voltage 16 Volts

Minimum Voltage 9 Volts

Mounting Type Flange

Multi-Volt N

Regulatory Compliance Dot

Shape Oval

Termination Amp

Voltage 12 Volts

Width 1.45 Inch
