ICM – ICM6501

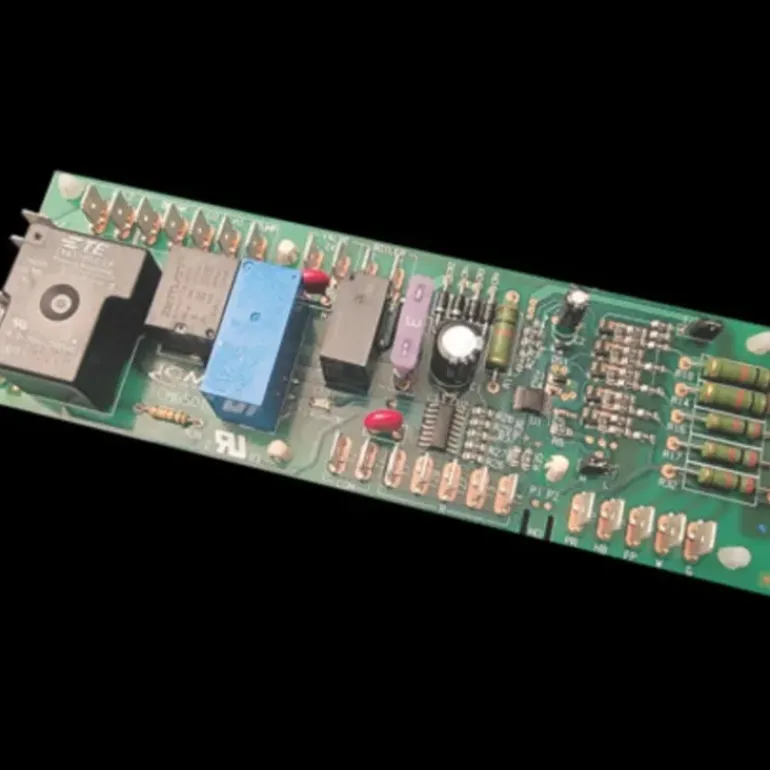

ClimaTek / First Company Air Handling Replacement Control. The ICM6501 air handler control board operates with hot water heating systems. When the thermostat calls for Heat, the control will energize the Water Pump, Valve and Boiler. The blower will energize at the selected speed after 90 seconds to allow the coil to preheat.

Features:

• Controls the water pump, valve, fan and boiler in a hot water heating system
• Jumper selectable high and low speed fan speed selection for 2 speed blower operations
• Integral fan delays for both heating and standard fan operation
• Monitors safety switches including the pressure switch and freeze protection switch
• Test mode feature for system diagnostic purposes
• LED status Light to aid in diagnosing power issues

Additional Information

Input Voltage 24 VAC, 120/240 VAC, 50/60 Hz

Valve Output 24 VAC, 50/60 Hz, 5A

Blower Fan 120/240 VAC, 50/60 Hz, 9.8 FLA

Water Pump 120/240 VAC, 50/60 Hz, 1.5 FLA

Boiler 24 VAC, 50/60 Hz, 5A

TimingFan on delay: 0 secs, Fan off delay: 45 secs, Heat fan on delay: 90 secs, Heat fan off delay: 20 secs

Surrounding Air Temperature Rating:-40ºF to 167ºF (-40ºC to 75ºC)
