ICM – ICM2812-KIT

Features :-

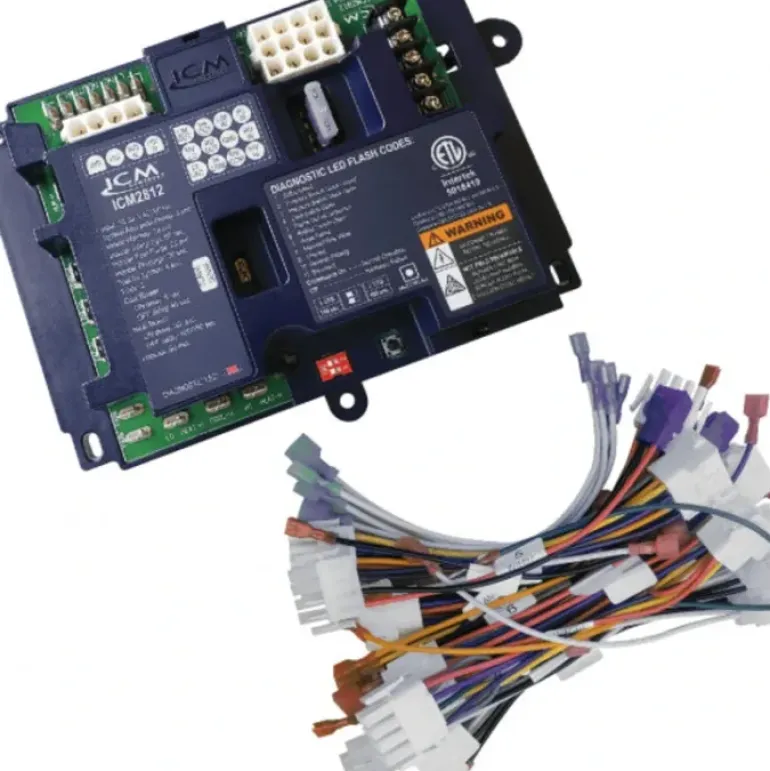

The ICM2812-KIT is a universal replacement board that comes packaged with a series of cable harnesses that make it a replacement for the White-Rodgers 50M56U-843 and more than 200 other popular part numbers! See the full cross reference information in the replaces section below.

• Hot Surface Ignition (HSI) control board
• Microprocessor-based
• Monitors timing, trial for ignition, system switches, flame sensing and lockout.
• 100% lockout safety feature
• Compatible with LP or Natural Gas
• LED indication for status and fault codes to aid in troubleshooting

WEIGHT/DIMENSIONS:

Weight: 1 lb.

Length: 5.125

Width: 7.0

Height: 1.25

Specifications:-

Electrical

• Control voltage: 24 VAC (18-30 VAC)
• Line voltage: 120 VAC
• Operating temperature: -40Ëšto 175ËšF (-40Ëšto 80ËšC)
• HSI Hot Surface Ignitor: 6 amp @ 120 VAC
• Gas Valve: 1.5 amp @ 24 VAC
• Inducer draft motor: 2.2 FLA @120 VAC
• Blower motor: 14.5 FLA @ 120 VAC

Environmental

• Operating Temp Range: -40° to 176°F (-40° to 80°C)
• Humidity Range: 5 to 95% relative humidity (non-condensing)
