Description

Product Description

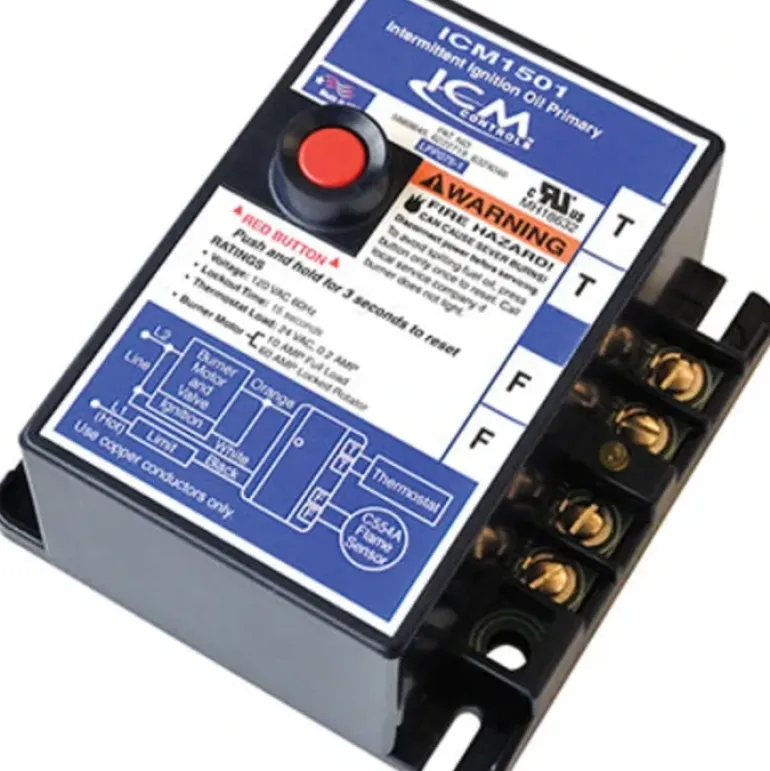

ICM – ICM1501

DETAILS:

• Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
• Solid state flame sensing circuit
• LED on terminal strip indicates system lockout
• Enclosed safety switch with external reset button
• Mounts on standard 4—4 J-Box (select models may be mounted directly on burner housing)
• C554A Cadmium Sulfide Flame Detector and 24 VAC thermostat required
• Replacement for popular competitive models

WEIGHT/DIMENSIONS:

• Weight: 0.95
• Height: 2.35
• Width: 4.08
• Length: 4.41

SPECIFICATIONS:

Ignition Type: Intermittent

Timing, Safety Switch: 15

Mounting Bracket: Standard 4—4 J-Box or direct mounting on burner housing

Electrical Rating (Contacts Full Load):
7.4 A @ 120 VAC
3.7 A @ 240 VAC

Electrical Rating (Contacts Locked Rotor):
44.4 A @ 120 VAC
22.2 A @ 240 VAC

Temperature Range:
-30°F to 130°F

Approvals: UL Approved
