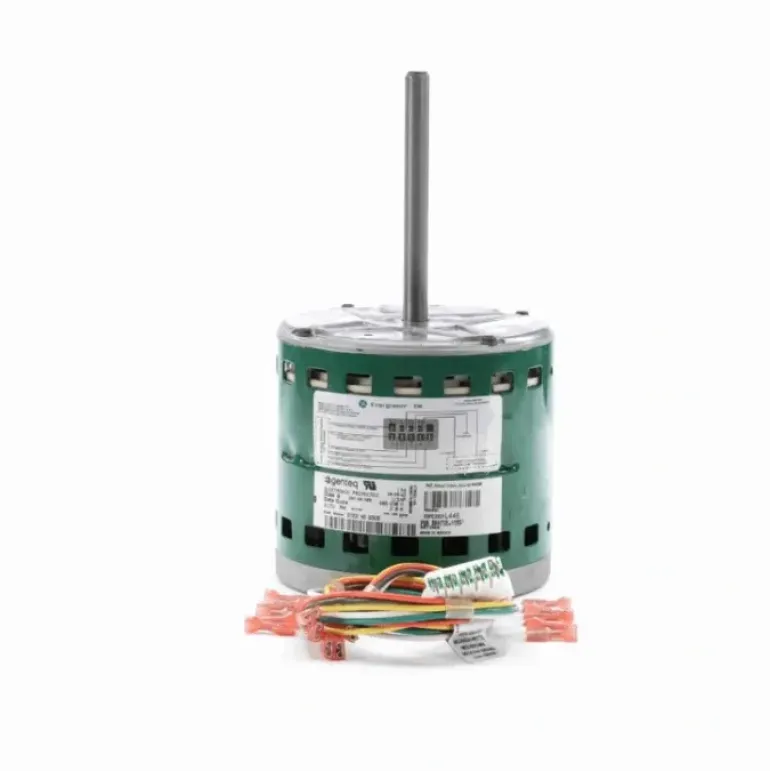

Genteq EVERGREEN® EM Fan and Blower Motor, 3/4 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 5 Speed, 48 Frame, OAO – 6107E – One-stop shop for professional tools and equipment.

Description

Product Description

Century – 6107E

• Evergreen EM – ECM Replacement Blower Motor
• 5.6″ Diameter – 48 Frame
• Electronically Commutated (ECM), Electronically Protected
• Up to five constant torque settings controlled by 24 VAC inputs
• Fully variable (PWM compatible) from 600-1100 RPM
• Open Air Over, Class B Insulation, 45°C Ambient
• Ball Bearing
• 1/2″ Diameter Shaft with Flat
• 42″ Leads
• Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionNo Protection

Speed1075 rpm

Current8.4 A

Number of Speeds5

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAN

Weight16.00 LB

Country Of originMexico

Output HP3/4 Hp

Output KW0.56 kW

Service Factor1

Frame48

EnclosureOpen Air Over

DutyContinuous Air Over

Electrical TypeElectronically Commutated Motor

Poles12

RotationCounterclockwise/Clockwise

MountingRound

Motor OrientationHor

Drive End BearingBall

Opp Drive End BearingBall

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length5.57 in

Shaft Diameter0.500 in

Shaft Extension4.92 in

CEN
