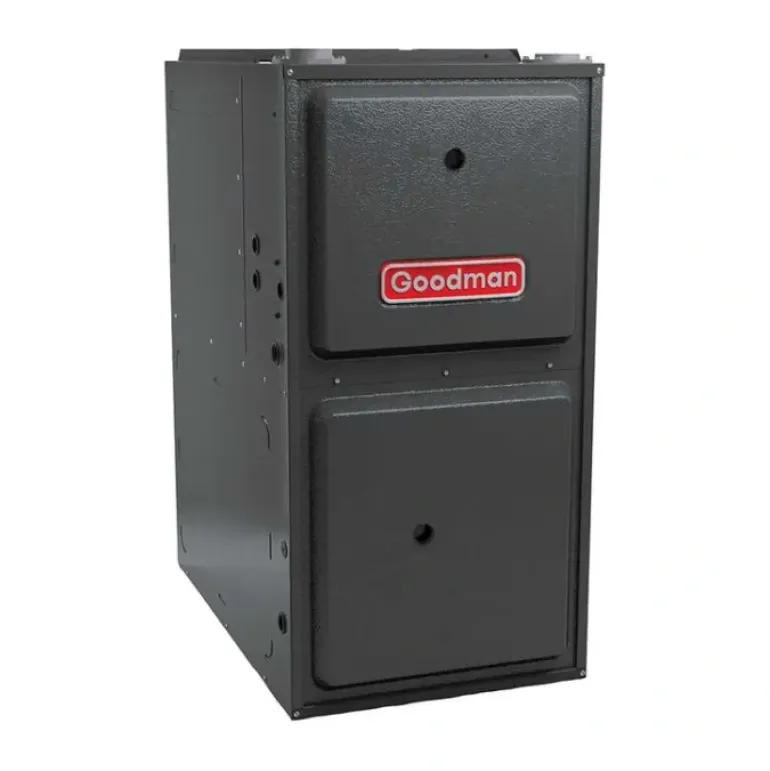

Daikin GMES960803BN Goodman 96% AFUE Gas Furnace Multi Speed ECM, Single Stage 80000 BTU – One-stop shop for professional tools and equipment.

Description

Product Description

Daikin – GMES960803BN Goodman 96% AFUE GMES96 Gas Furnace Multi Speed ECM, Single Stage, Upflow/Horizontal, 80000 BTUH/H,

Specifications :

• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel sloped secondary heat exchanger
• Silicon Nitride igniter
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor with continuous fan speed
• Fault code LED Output
• AHRI Certified – ETL Listed
• Energy Star
• Single-Stage gas Valve
• Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
• 1 Low constant fan speed circulates air throughout the home
• 1 High static
• 1 All models comply with California Ultra-Low N0x 14 ng/J

Cabinet Features :

• Multi-position installation: upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
• Easy to install top venting with optional side vent
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (Qleak) less than or equal to 2%
• Fully insulated heat exchanger and blower section
• Bottom or side return air applications
• Heavy-gage steel cabinet with durable finish

Additional Information

BrandGoodman

Prop65 Label RequiredTRUE

Unit Depth29 in

Unit Height34-1/2 in

Unit Width17-1/2 in

Efficiency0.96

Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE

Model Efficiency0.96

FamilyGMES96

Unit TypeIndoor

Unit Weight114 lb

Min. Circuit10.3 A

Motor Speed TypeMulti Speed ECM

Power Frequency60 Hz

Power Phase1 Ph

Power Voltage115 V

Blower Motor RPM1200 r/min

AFUE96 %

Airflow Rate High Heating1414 ft³/min

High-Fire Input Capacity80000 Btu

High-Fire Output Capacity76880
