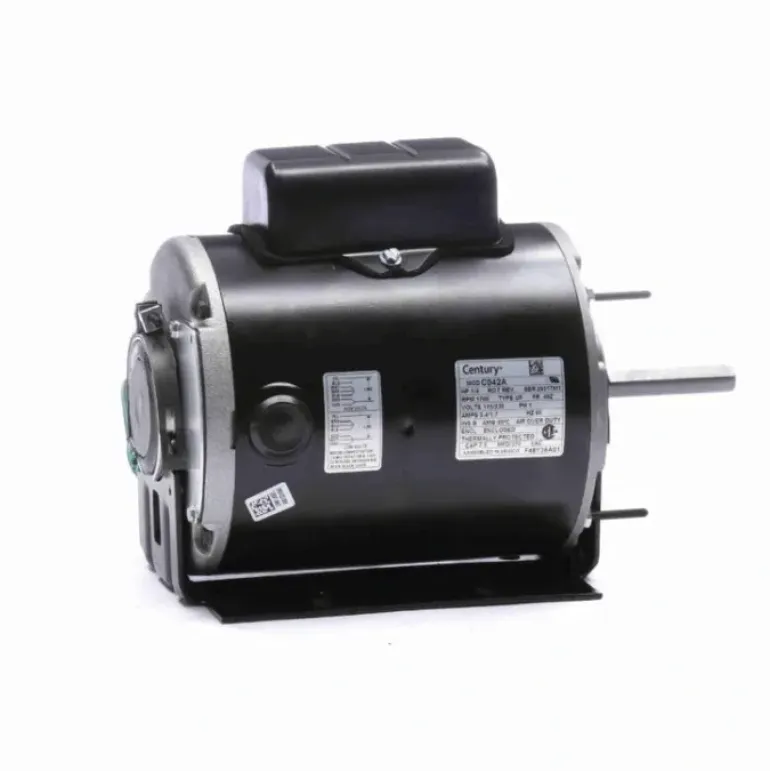

Century Direct Drive Fan Motor, 1/3 HP, 1 Ph, 60 Hz, 115/230 V, 48Z Frame, TEAO – C043A – One-stop shop for professional tools and equipment.

Description

Product Description

Century – C043A

• Farm / AG Direct Drive Fan Motor
• 5.6″ Diameter – 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
• Thermal Protection: Automatic
• Totally Enclosed Air Over, Fully Gasketed
• Class B Insulation, 40°C Ambient
• Ball Bearings, Double Sealed
• 1/2″ Diameter Shaft with Double Flat
• Resilient Base, Extended Studs Shaft End

Additional Information

Thermal ProtectionAutomatic

Speed1725 rpm

Current3.6/1.8 A

Number of Speeds1

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight20.00 LB

Country Of originMexico

Output HP1/3 Hp

Output KW0.25 kW

Service Factor1

Frame48Z

EnclosureTotally Enclosed Air Over

DutyAir Over

Electrical TypePermanent Split Capacitor

Poles4

RotationReversible

MountingResilient Base

Drive End BearingBall

Opp Drive End BearingBall

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length6.00 in

Shaft Diameter0.500 in

Shaft Extension3.14 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
