Description

Product Description

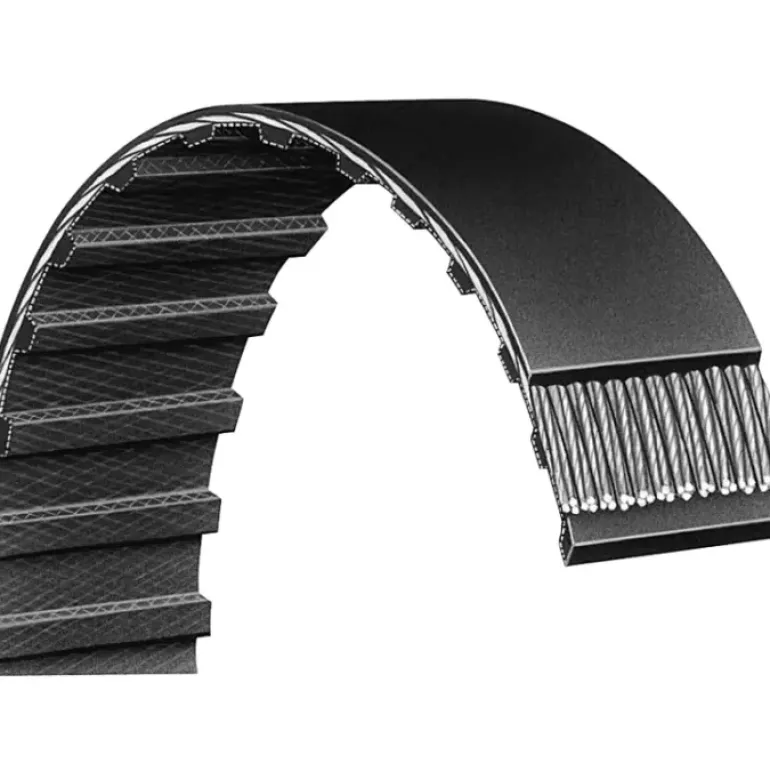

Bando – 270H100G The extra durable, highly flexible neoprene backing provides excellent abrasion and wear resistance ” especially important if power is transmitted from the back of the belt. Backing also guards the tensile cords against oil, grease, dirt, and moisture.

• Continuous, helically-wound high strength fiberglass tensile cords guarantee dimensional stability to eliminate take-up adjustments. Heavy torque loads won™t fatigue this super strong cord. S and Z orientation of the cords aid in minimizing belt tracking problems.
• Precision formed, oil and heat resistant neoprene teeth have a shear resistance equal to the tensile strength of the belt (under standard 6 teeth in mesh tests). Tooth design and tight manufacturing tolerances provide full surface contact between belt and pulley for smooth running characteristics.
• The tooth surface is protected by a low friction, clean running, wear resistant woven nylon facing. Seamless construction eliminates vibration.

Additional Information

Bore0.5

Outside Diameter w/o Flange2.753

Price Class501

Weight (lbs)0.1647

Number of Teeth54

Pitch Diameter2.807

Tooth Pitch (In)0.5

Tooth Pitch (mm)12.7

Tooth ProfileH

Multiplier0.3345

Belt Width (In)1

Belt Width (mm)25.4

ColorBlack

Ribs/Teeth/Angle54

CordFiberglass

Height (In)0.17

Height (mm)4.3

MaterialNeoprene

Nominal Outside Length (In)27

Nominal Outside Length (mm)685.8
