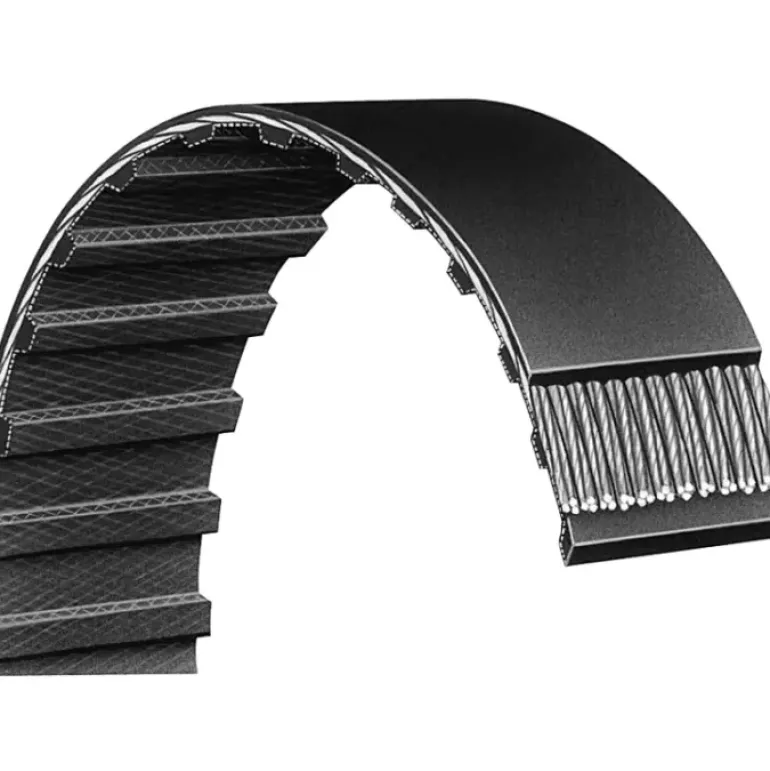

Bando 255L075G L Timing Belt – One-stop shop for professional tools and equipment.

Description

Product Description

Bando – 255L075G The extra durable, highly flexible neoprene backing provides excellent abrasion and wear resistance ” especially important if power is transmitted from the back of the belt. Backing also guards the tensile cords against oil, grease, dirt, and moisture.

• Continuous, helically-wound high strength fiberglass tensile cords guarantee dimensional stability to eliminate take-up adjustments. Heavy torque loads won™t fatigue this super strong cord. S and Z orientation of the cords aid in minimizing belt tracking problems.
• Precision formed, oil and heat resistant neoprene teeth have a shear resistance equal to the tensile strength of the belt (under standard 6 teeth in mesh tests). Tooth design and tight manufacturing tolerances provide full surface contact between belt and pulley for smooth running characteristics.
• The tooth surface is protected by a low friction, clean running, wear resistant woven nylon facing. Seamless construction eliminates vibration.

Additional Information

Price Class502

Weight (lbs)0.0937

Number of Teeth68

Tooth Pitch (In)0.375

Tooth Pitch (mm)9.5

Tooth ProfileL

Multiplier0.3419

Belt Width (In)0.75

Belt Width (mm)19.1

ColorBlack

Ribs/Teeth/Angle68

CordFiberglass

Height (In)0.14

Height (mm)3.6

MaterialNeoprene

Nominal Outside Length (In)25.5

Nominal Outside Length (mm)647.7
