Baldor EM31158 3Hp, 3450Rpm, 3Ph, 60Hz, 56H, 3528M – One-stop shop for professional tools and equipment.

Description

Product Description

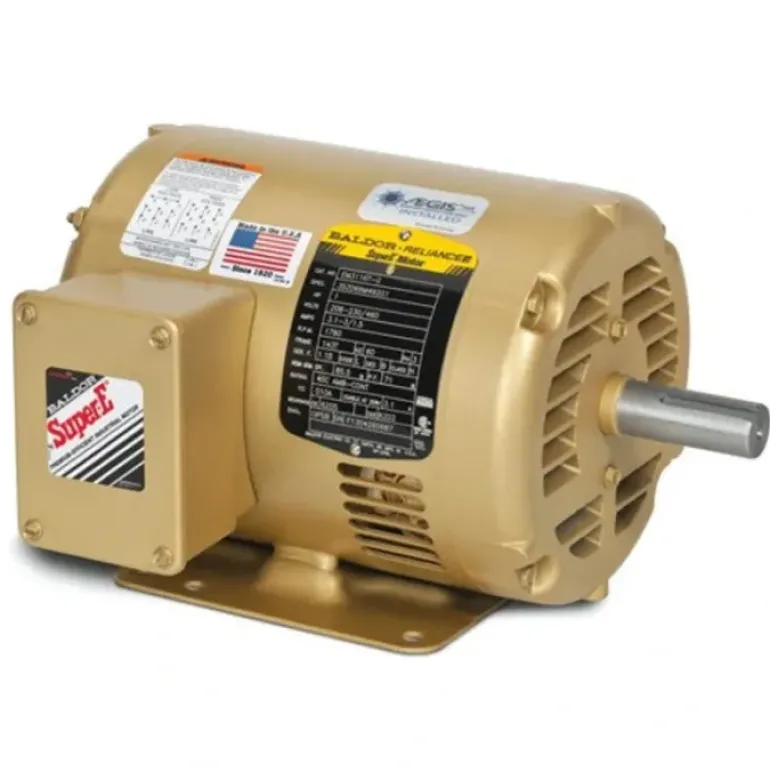

Baldor – EM31158

Additional Information

ManufacturerBaldor

Nameplate Output0.75

Number of Poles4

Phase3

MultiplierK

Shaft Diameter (In.)0.625

Speed 1760 RPM

Product Style GRINDER

Wheel Bore Size (In.)0.75

Wheel Diameter(In.)8

Wheel Face(.)1

Starting Method Direct on line

Frame 56H

Output @ Frequency 3.000 HP @ 60 HZ

Synchronous Speed @ Frequency 3600 RPM @ 60 HZ

Voltage @ Frequency 230.0 V @ 60 HZ

Frame Material Steel

Motor Letter Type Three Phase

Catalog Number EM31158

Enclosure OPEN

XP Division Not Applicable

Agency Approvals C UR US ENERGY

Armature Voltage 230 V

Base Speed 1750 RPM

Field Voltage 230 V

Output Power 40.000 KW

Ambient Temperature 40 °C

Armature Current 174.0 a

Base Indicator Rigid

Bearing Grease Type Polyrex EM (-20F +300F)

Drip Cover No Drip Cover

Duty Rating CONT

Feedback Device NO FEEDBACK

Field Winding Type COMPOUND

Frame Prefix L

Heater Indicator No Heater

Insulation Class F

Lifting Lugs No Lifting Lugs

Mounting Arrangement F1

Overall Length 11.07 IN

Service Factor 1.15

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Slinger Indicator No Slinger

Motor Standards NEMA

Auxillary Box No Auxillary Box

Constant Torque Speed Range 6-60

Current @ Voltage 1.200 A @ 575.0 V

Design Code B

Efficiency @ 100% Load 85.5 %

Enclosure Modification Severe Duty Features

High Voltage Full Load Amps 1.2 a

Inverter Code Inverter Ready

KVA Code L

Motor Lead Quantity/Wire Size 3 @ 18 AWG

Motor Type 3520M

Power Factor 71

Product Family General Purpose

Pulley End Bearing Type Ball

Pulley Face Code Standard

Shaft Rotation Reversible

Speed Code Single Speed

XP Temp Code T2C

Max Speed 3000 RPM

Electrically Isolated Bearing Not Electrically Isolated

Front Face Code Standard

Locked Bearing Indicator No Locked Bearing

Motor Lead Exit Ko Box

Motor Lead Termination Flying Leads

Pulley Shaft Indicator Standard

RoHS Status ROHS COMPLIANT

Vibration Sensor Indicator No Vibration Sensor
