Description

Product Description

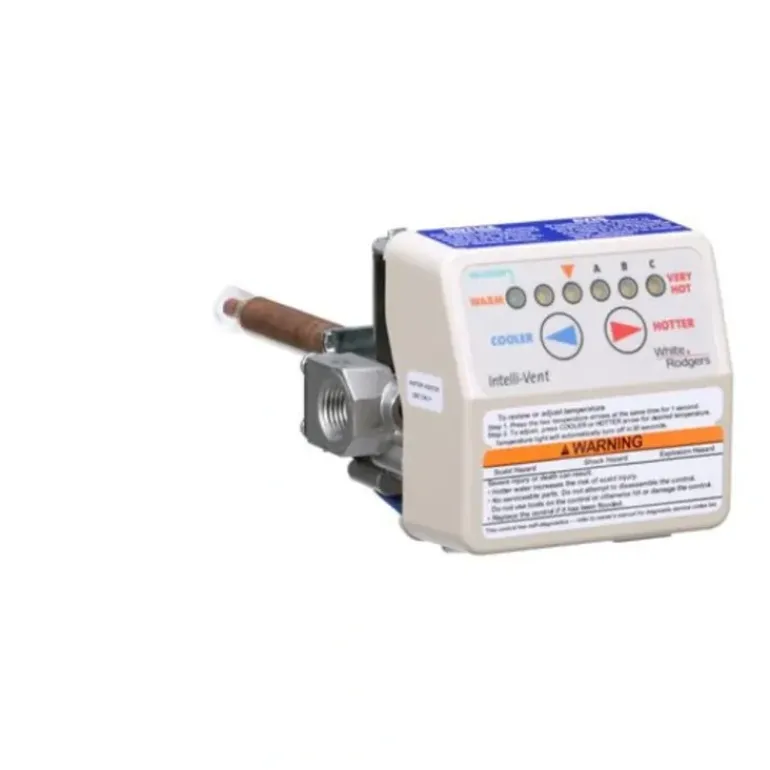

White Rodgers – 37E73A-922 Power vented water heater gas combination control, ignition and thermostat

Features:

• INTELLI-VENT„ combines gas, ignition and thermostat into one control
• Right angle with 1/2 N.P.T. inlet and 1/2 inverted flare outlet
• 70° to 160° range
• Regulation range 20,000 to 150,000 BTU’s
• Natural gas only

Additional Information

Regulator Setting3.5 W.C. Nat. Gas

Temperature Range70° to 160°F

Length1.72 in. Shank

Operating Voltage120 Vac, 60 HZ

AmperageInducer Motor 3.0 FLA, 4.0 LRA, Ignitor 2.0

Range of Regulation (BTU/Hr.)30,000 – 150,000 BTU/Hr.

1.0 Pressure Drop Capacity100,000 BTU/Hr. (1000 BTU/ft3, 0.64 specific Gravity Natural Gas)

Maximum Inlet Pressure1/2 PSI

Maximum Inlet Pressure1/2 PSI
