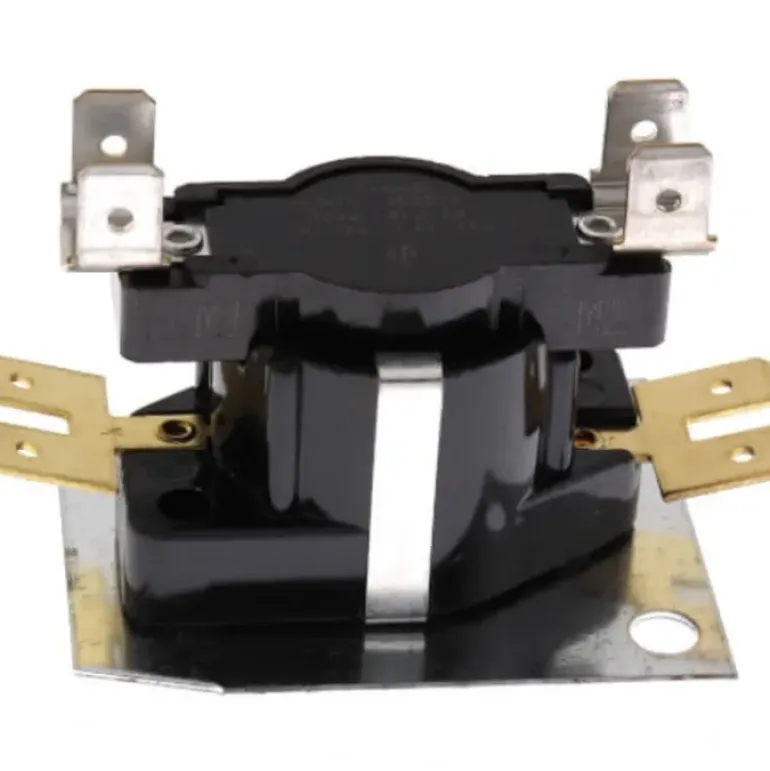

White Rodgers – 24A34-005S1 Direct replacement for most fan and heat sequencing functions

Features:

• Replaces Honeywell, MARS, TOD, Gemline, Klixon (Texas Instruments)
• 24V input control
• Multi-poise mounting
• Any contacts (except M1 M2) can be used as auxiliary contacts
• Double quick-connect terminals for combination loads

Additional Information

Amperage14.0 FLA, 72.0 LRA, 25.0, 3000W Res at 120 Vac, 7.0 FLA, 42.0 LRA, 25.0, 6000W Res at 240 Vac, 12.5, 6000 Res at 480 Vac

VA Output120-240 Vac 125 VA, 480 Vac 480 VA

Pilot Duty120-240 Vac 125 VA, 480 Vac 480 VA

Switch Description3

Timings2 (note: some switch pairs turn ON or OFF simultaneously, consult instruction sheet for more detail)

Timings-On In Seconds1 to 110, Switch M5-M6

Timings-Off In Seconds1 to 110, Switch M5-M6

Ambient Operating Temperature Rating-50 to +165?F

Inductive (Motor) Full Load 120 Vac14.0A

Inductive (Motor) Full Load 240 Vac7.0A

Inductive (Motor) Full Load 480 Vac?

Inductive (Motor) Locked Rotor 120 Vac72.0A

Inductive (Motor) Locked Rotor 240 Vac42.0A

Inductive (Motor) Locked Rotor 480 Vac12.5A, 6000W
